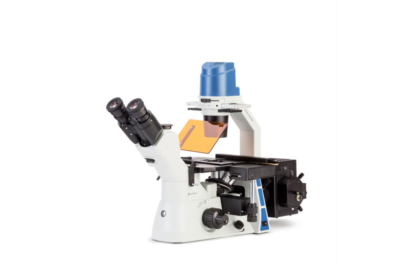

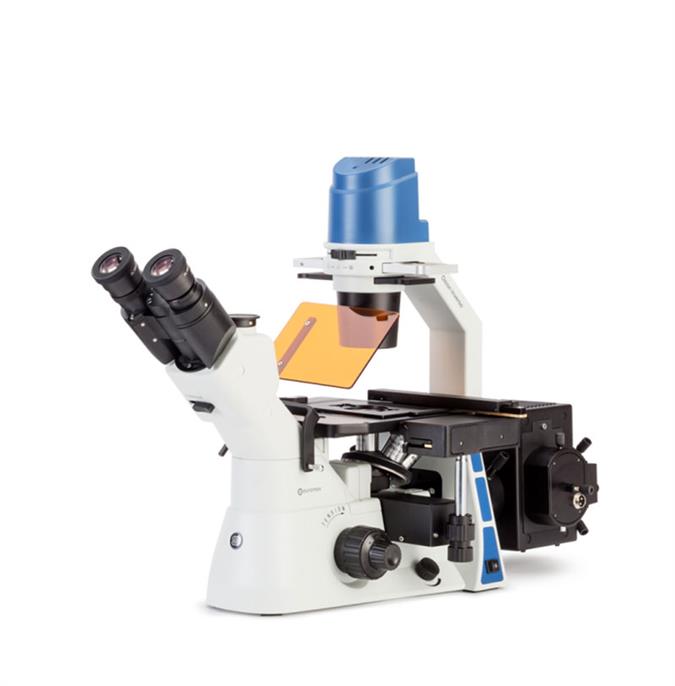

میکروسکوپ فلورسانس مدل Oxion Inverso محصول کمپانی Euromex هلند و دارای مشخصات زیر می باشد :

لنزهای چشمی :

Pair of DIN HWF plan 10x/22 mm eyepieces

لنزهای شیئی :

OBJECTIVES FOR BRIGHTFIELD
(models OX.2003-PL and OX.2053-PL)

Infinity color corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives. An optional 60x/0.70 IOS objective is also available

OBJECTIVES FOR PHASE CONTRAST
(models OX.2003-PLPH and OX.2053-PLPH)

Infinity color corrected long working distance plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives

(Photo: OX.9190 Slider with 4x/10x and 20x/40x phase contrast annuli)

OBJECTIVES FOR BRIGHTFIELD AND FLUORESCENCE MICROSCOPY
(models OX.2253-PLF and OX.2453-PLF)

Infinity color corrected long working distance plan Fluarex 10x/0.30, 20x/0.45, 40x/0.65 IOS objectives. An optional plan Fluarex 60x/0.75 IOS objective is also available

OBJECTIVES FOR PHASE CONTRAST AND FLUORESCENCE MICROSCOPY
(models OX.2253-PLPHF and OX.2453-PLPHF)

Infinity color corrected long working distance plan fluarex 10x/0.30 and plan phase fluarex 20x/0.45 and S40x/0.65 IOS objectives. All objectives corrected for 1.2 mm thickness. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

استیج :

Stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:

- metallic insert for Ø 35 mm cell culture dish dishes
- 76 x 26 mm slide holder
- glass insert with hole
- optional universal cell culture dish holder

منبع نور :

Transmitted 5 W LED Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V. The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with external 100-240 V power supply, fuse holder 3.15 A / 250 V, UV protection shield
