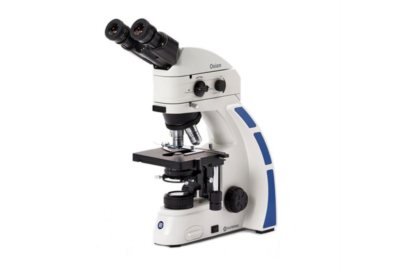

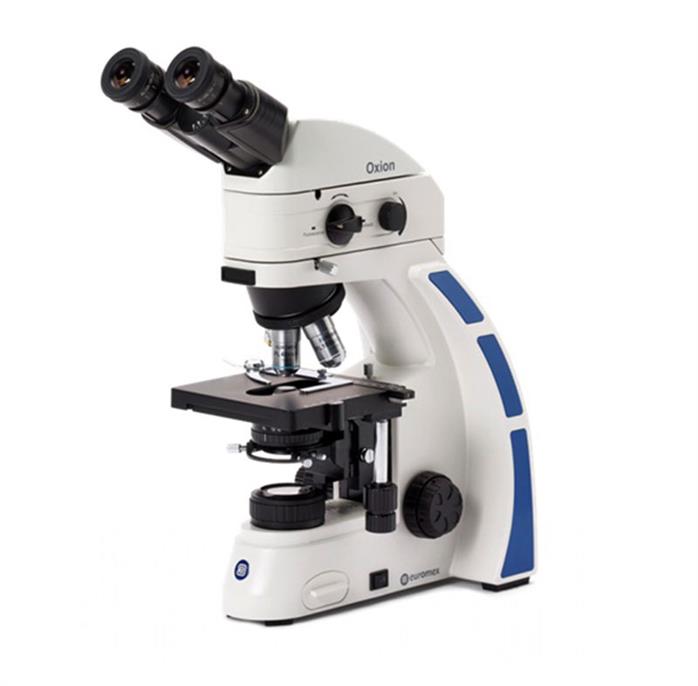

Upright Microscope

Oxion Series

• HWF 10x/22 mm eyepieces
• Bino, trino and multihead systems
• Optional tilting head
• Reversed nosepiece for maximum 5 objectives
• 150 x 140 mm stage
• Optional ceramic stage
• Abbe condenser and Zernike condenser for phase contrast
• 3 W LED illumination for brightfield and phase contrast
• 5 W LED illumination for dark field applications Ergonomical stand and head
• 10 years warranty

OBJECTIVES - IOS INFINITY CORRECTED SYSTEM:

• Semi plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan phase contrast 10x/0.25, 20x/0.45, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan semi apochromatic fluarex 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objective
