Pilot Fermentor

Brand Name:
Centrion

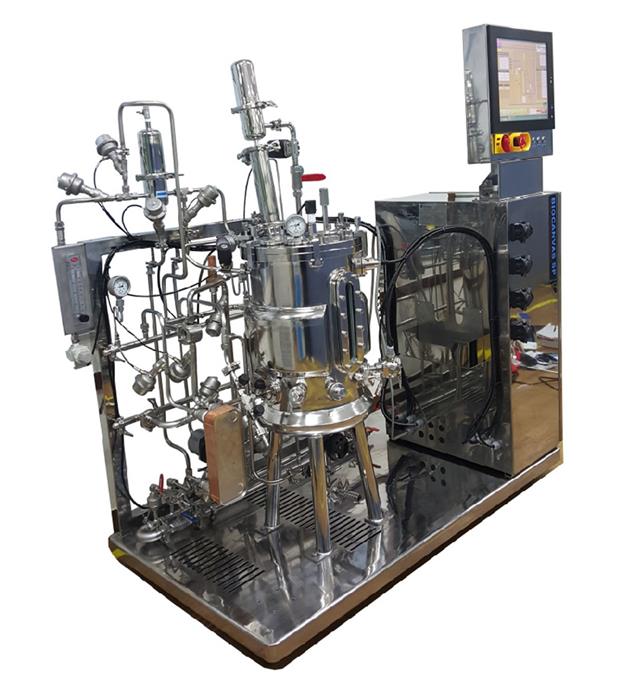

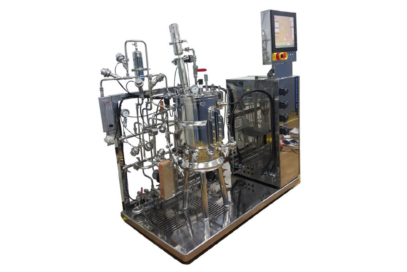

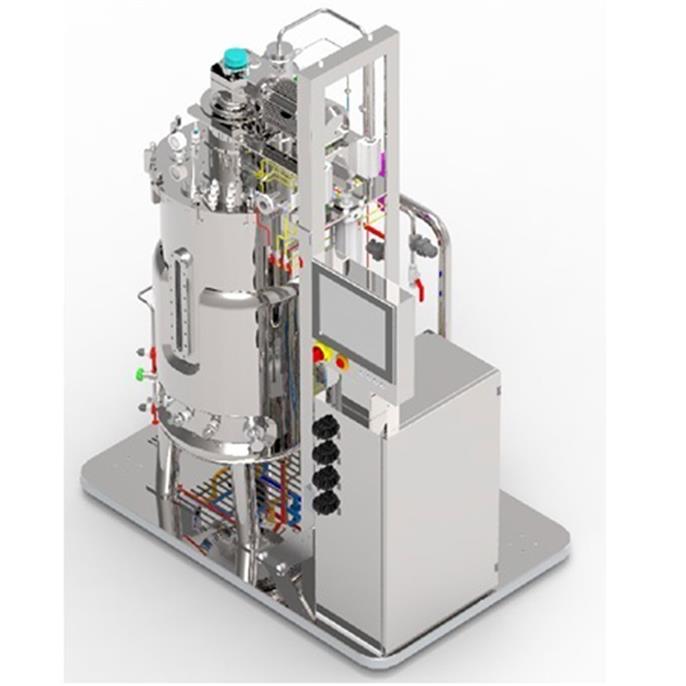

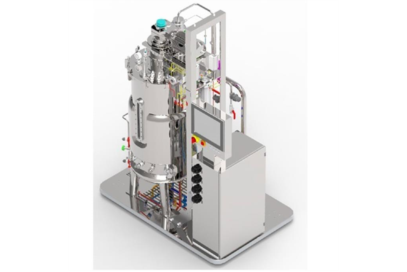

BIOCANVAS SP

In-Situ Sterilizable Fermentor

Specifications

Vesel Volume	30L~500L
Agitation	AC Motor Top or Bottom Drive (Mechanical seal/Magnetic Coupling) 50~1,000rpm
Meterials & Finish	Vessel/Piping : SUS316L,SUS304(Elecrolytic polishing)
Sterilization	Heat exchanger or inject steam into jacket.(105℃~130℃)
Aeration	* Sparger : Ring sparger(SUS 316L) * Filter : Inlet(0.2㎛), Outlet filter(0.2㎛)
Sensor	pH,DO,Temp,Anti-Foam, Pressure Control
Controller	17” Touch Screen Color LCD, PLC system
Data Storage	pH, DO, Pressure, Temperature and Agitation speed
